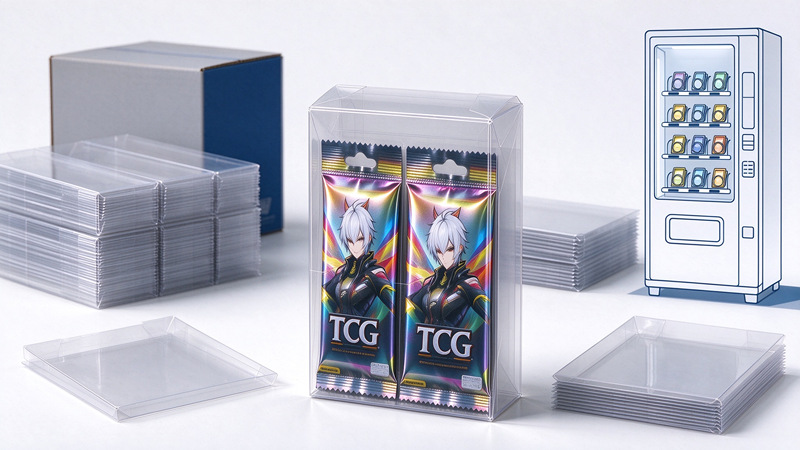

Vending machine retail has grown rapidly within the TCG (trading card game) hobby and niche specialty retail. More operators are ditching opaque packaging and flimsy plastic bags in favor of custom clear PET folding cartons. These transparent boxes showcase sealed merchandise, protect product condition, and are engineered to work with vending machine dispensing systems.

However, most off-the-shelf clear boxes are designed for shelf display, not automated vending. Poor box construction, incorrect sheet thickness or poorly calculated dimensions can cause jams, premature opening, product damage and costly machine downtime.

This guide explains how to select durable, cost-effective clear PET folding boxes built for vending machines, with a focus on TCG booster pack bundles and small specialty retail products.

1. Core Rule: Prioritize Vending Compatibility Over Visual Appeal

Shelf packaging only needs to look good and offer basic protection. Vending packaging must withstand mechanical pushing, friction and drop impact during dispensing. A reliable vending PET box must hit three benchmarks:

(1)Robust structure: No splitting, popping open or deformation when dispensed

(2)Tight dimensional tolerance: Fits machine slots without jamming or excessive movement

(3)Quick hand assembly: Lower labor cost for regular restocking

For TCG vending businesses selling two booster packs as one bundled unit, packaging must also avoid squeezing the top of sealed card packs. Bent booster tops reduce collectible value and frustrate hobby customers.

 2. PET Material Thickness: Balance Stiffness & Total Cost

Sheet thickness directly impacts box durability and vending performance. For thin bundled goods like TCG packs, two grades are widely used:

(1)0.30mm Clear PET (Budget Option)

Best for low-traffic indoor vending, pilot launches and large orders with tight budgets. It delivers excellent clarity, clean consistent creasing and adequate crush resistance at the lowest unit price. Ideal for trial runs and standard vending deployments.

 (2)0.4mm Clear PET (Heavy-Duty Option)

Recommended for high-volume vending, locations with fluctuating temperatures and high-value collectible goods. It offers greater rigidity and better impact resistance. It resists whitening and cracking under repeated pressure, minimizing box deformation and machine jams. This is the preferred choice for fully commercial TCG card vending machines.

> Industry Tip: PET thinner than 0.30mm easily creases and warps under mechanical pressure. Sheets thicker than 0.4mm make folding harder and add unnecessary cost.

 3. Dimension Pitfall: Ultra-Narrow Depth Is The  Customization Mistake

8mm ultra-narrow depth limitation: An 8mm depth box cannot support a stable auto-lock base. The bottom joint becomes fragile, prone to bursting open during vending drops. It raises reject rates in production and increases per-unit cost.

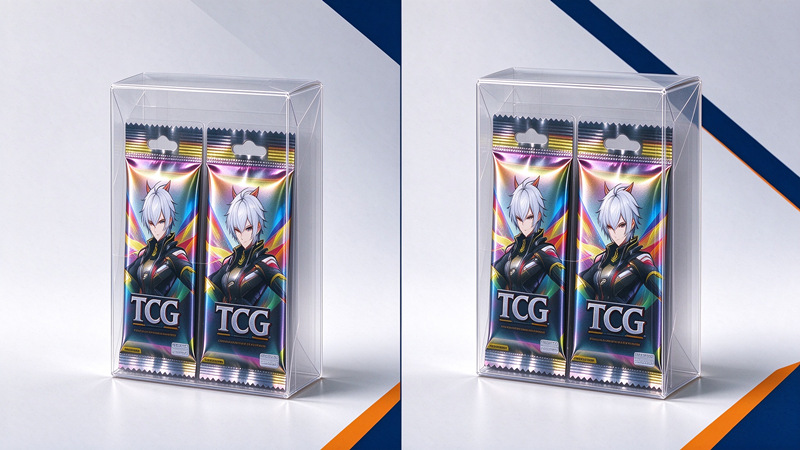

Our Recommendation: For dual TCG booster pack bundles, keep height and width unchanged and adjust depth from 8mm to 10mm. You keep the fast auto-lock bottom, stable vending dispensing, lower defect rates and better pricing. If 8mm depth is non-negotiable, you will need to switch to a simple tuck bottom and accept slower manual assembly.

4. Vending-Optimized Box Structure: Fast Assembly + Anti-Drop & Anti-Opening

Structure defines your operational efficiency and machine compatibility. For vending applications, this proven design delivers the best balance of cost and reliability:

(1)Top: Wide Loading Opening + Simple Tuck Closure

A widened top opening lets staff load two card packs or small items in seconds. The simple tuck flap is easy to fold, stays closed through transit and dispensing, and requires no extra assembly steps.

 (2)Bottom: Auto-Lock Bottom (First Choice for Vending)

Auto-lock bottoms require no glue. The base locks automatically once the blank is unfolded. It offers fast assembly and strong load resistance. It survives mechanical pushing and typical vending machine free falls, solving common issues: box blowout, product spillage and machine jams.

5. Printing & Branding: Subtle Marking Without Blocking Visibility

Vending clear boxes exist to display your sealed product. Heavy full-color printing obscures contents and weakens buyers’ confidence in untouched sealed goods. Two practical options:

(1)Unprinted Clear Version (A): Fully transparent, maximum visibility of original sealed products, lowest cost. Great for test sales and universal SKUs.

(2) Light One-Color Logo Version (B):Small one-color mark on a single panel. Low-cost branding that does not block product view. It boosts brand identity while fitting premium hobby retail positioning.

 6. Factory & Quality Standards For Mass Production

Vending packaging demands consistent creases and clean-cut edges. Burrs or uneven scoring will trigger machine jams. Your packaging supplier must meet these requirements:

(1) Die cutting, creasing, gluing and printing completed in-house for quality control

(2)Smooth edges without burrs; uniform creases that do not whiten or crack on folding

(3)Flat-packed bulk delivery, no individual poly bags or protective film, to cut shipping volume and ocean freight cost

(4) Provide professional dieline artwork for customer approval before production

 7. Procurement Checklist to Avoid Custom Packaging Risks

Before mass production of custom PET vending boxes, confirm these items to prevent costly delays:

(1) Prototype testing first: Order 10–20 physical samples to test product fit and vending machine dispensing performance

(2)Tiered pricing confirmation: Get unit costs for 1K / 3K / 5K / 10K / 25K quantities, plus MOQ, die tooling and print setup fees

(3) Clear trade terms: Check EXW, FOB or DDP door-to-door pricing, clarify shipping method and included duties & taxes

(4)Bulk shipping specs: Confirm export carton dimensions, gross weight and packing quantity for freight budgeting

(5) Lead time: Lock sample turnaround and mass production lead time after sample approval

The best clear PET folding box for vending machines is not the thickest or most eye-catching option. It is the design that offers great machine compatibility, balanced cost and reliable structure.

For TCG card vending bundles, start with 0.30mm / 0.4mm high-clarity PET, 10mm safe depth with auto-lock bottom and wide-opening fast loading design. Always validate samples before large orders to avoid operational headaches.

Looking for custom vending-grade PET folding box solutions or tiered pricing? We offer professional dieline design, prototype validation and full custom packaging services for global vending and retail brands.
